A Real Case Study: Technical Co-Creation and Re-engineering the Power and Acoustic Experience of a Rabbit Vibrator in 45 Days
Background: Begins with Exploration, Succeeds through Co-Creation
In 2023, a collaboration built on the relentless pursuit of product perfection officially began. As an ISO 13485 certified direct factory, the engineering team at Kenier Co has always maintained deep technical exchanges with this renowned US brand.
During one of our discussions, the client candidly shared an engineering challenge: one of their flagship products was experiencing unexpected market pushback. Driven by an engineer's instinct to solve complex problems, we proactively proposed that the Kenier Co team conduct an in-depth teardown and reverse engineering analysis of the defective units.
Over the next 45 days, we worked closely with the client's R&D team to completely re-engineer the underlying electromechanical and acoustic logic of the product, ultimately helping the brand successfully reverse its market reputation.
1. Listening to the Market: Pinpointing the Experience Gap
The Phenomenon:
On the brand's premium independent website, user feedback regarding their core rabbit vibrator revealed two specific engineering pain points: "weak vibration" and "loud noise."
For experienced users in the US and European markets, a superficial "buzzing" sensation is highly undesirable. What they truly demand is a deep, rumbly vibration that penetrates the material to stimulate the nerves. This experience gap became the critical issue we needed to resolve.
Engineering Teardown and Root Cause Analysis:
Upon receiving the samples, the Kenier Co engineering team, led by our Chief Engineer Mr. Wen, conducted meticulous structural and acoustic testing. We discovered that the root cause of the subpar experience lay in compromises within the original power matching and cavity acoustic design.
Measuring 19.5 x 3.8cm, both the main shaft and the clitoral stimulator (rabbit ear) require substantial vibrational energy. However, the original R280 and 130 micro-motor combination suffered from a severe mismatch between the eccentric weight mass and the motor's KV rating. To compensate for the lack of physical thrust, the original design was forced to push the motor to a much higher RPM.
This "high-speed, low-torque" operational state failed to generate deep resonance. Instead, it triggered high-frequency mechanical whining and severe resonance within the silicone cavity.
Technical Analysis Process
Detailed engineering teardown revealing motor performance and acoustic design issues
Business Impact Analysis
Visualizing the chain reaction of engineering flaws on business operations
2. The Chain Reaction of Engineering Flaws (Business Impact)
Minor tolerances and compromises in the underlying electromechanical design were quickly magnified in the end market, causing tangible distress for the brand:
Compromised Brand Experience:
The persistent noise issues eroded consumer expectations of this premium brand's quality.
Increased Operational Costs:
High return and exchange rates driven by poor user experience inflated reverse logistics costs.
Customer Support Strain:
The after-sales team had to spend immense energy addressing genuine user dissatisfaction stemming from fundamental design flaws.
3. The Kenier Co Solution: 45 Days of Core Re-engineering and Acoustic Breakthrough
Having identified the crux of the issue, we abandoned the conventional "plug-and-play" approach of simply swapping in a larger motor. Adopting a strict custom manufacturing philosophy, we initiated a meticulous refinement of the electromagnetic conversion and acoustic isolation systems.
Action and Real Parameters:
Motor Engineering Excellence

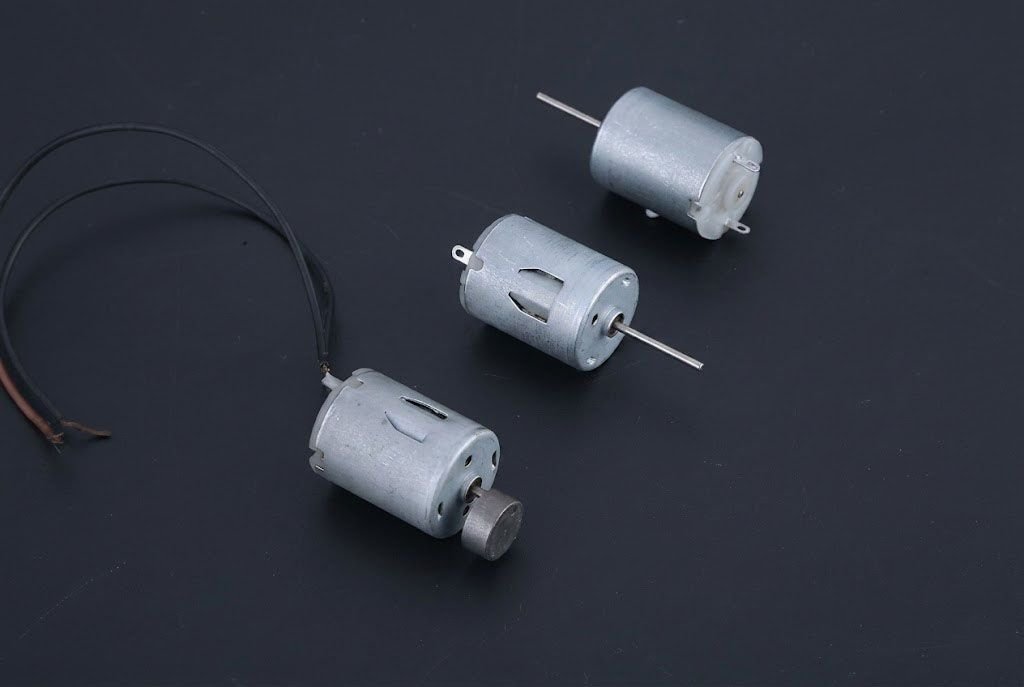

Custom R280 motor with optimized torque-speed characteristics
Optimizing the Torque-Speed Curve:
True deep vibration stems from high torque, not merely high RPM. Partnering with our core motor supply chain, we re-optimized the enameled wire's slot fill factor within the physical constraints of the R280 casing and paired it with high-flux magnetic materials. This custom motor delivers exceptionally high starting torque at a much lower, stable rated RPM. This provided the perfect physical foundation for an authentic "deep and rumbly" vibration without relying on speed spikes.
Acoustic Isolation and the <35dB Breakthrough:
Achieving under 35dB of noise in a 19.5cm solid silicone device under maximum load and high torque is a severe engineering barrier. Conventional assembly processes typically peak around the 45dB limit. Rather than compromising vibration strength to lower the volume, we implemented a three-tier acoustic isolation protocol at the source:
Dynamic Balancing:
We subjected all eccentric weights to rigorous dynamic balancing tests to eliminate high-speed unbalanced wobbling.
Structural Decoupling:
We redesigned the internal bracket with a suspension and cushioning structure. This effectively absorbs high-frequency motor whine and blocks acoustic wave transmission to the outer silicone shell.
Extreme Tolerance Control:
We drastically tightened the assembly tolerances of all internal structural components, completely eliminating secondary mechanical rattling.
Acoustic Engineering Breakthrough
Three-tier isolation protocol achieving <35dB operation
Co-Creation Results:
Through 45 days of intense collaboration, we delivered the following results:
Redefining the Quiet Standard:
Through continuous iteration, the operational noise of this single-function rabbit vibrator at full load was stably suppressed to under 35dB—achieving a truly whisper-quiet, private experience.
Reshaping the Deep Experience:
The highly penetrating, low-frequency vibration won back the approval of US and European users. The return rate plummeted, and the independent website's review section once again welcomed genuine five-star ratings.
Strategic Partnership Excellence
From supplier to R&D partner - engineering excellence in collaboration
From Supplier to R&D Partner:
This joint engineering effort deeply reinforced our core belief: an exceptional OEM/ODM manufacturer shouldn't just be an assembler following blueprints, but a technical partner standing firmly behind the brand. It is Kenier Co's greatest honor, and our core value, to utilize our hard-core engineering capabilities to help outstanding brands conquer industry challenges and craft ultimate products.
